Background

The keyboard I using is the ErgoDox, an ergonomically split keyboard. More details about ErgoDox can be found in my previous answer.

keyboard-view

(former keycap color scheme + hand rest).

keyboard-view-2

After seven or eight years of work, it has been into the water, into the coffee, but also into the soy milk, now finally a few keys are not flexible, pressed a sticky feeling, can not provide a smooth coding feel.

After a few months of using a back up Filco, I finally made up my mind to get the ErgoDox fixed.

Prepare

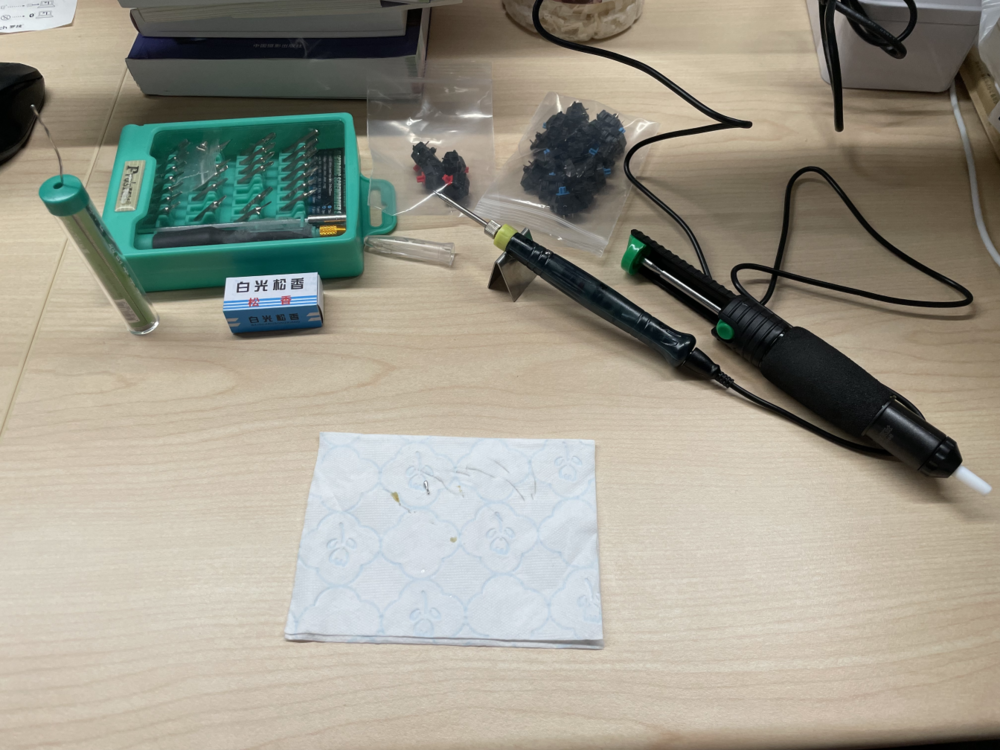

prepare

  • Soldering Iron
  • Solder Sucker
  • Solder
  • Key Shaft
  • Seiko Screw Driver Kit
  • Key Puller
  • Cherry Key Switch Puller

For those without soldering experience, you can learn how to soldering.

女生都能学会的键盘焊接换轴教程_哔哩哔哩_bilibili

电烙铁的错误和正确使用方法_哔哩哔哩_bilibili

Processing

Check which key shafts to replace, press one and listen to one

step-1

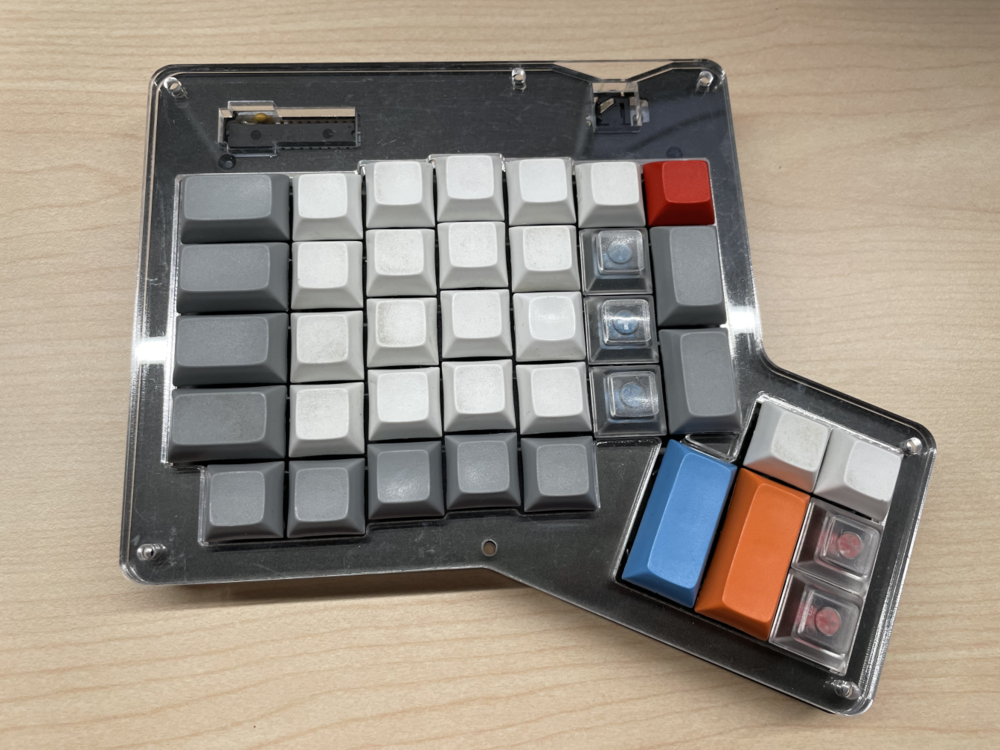

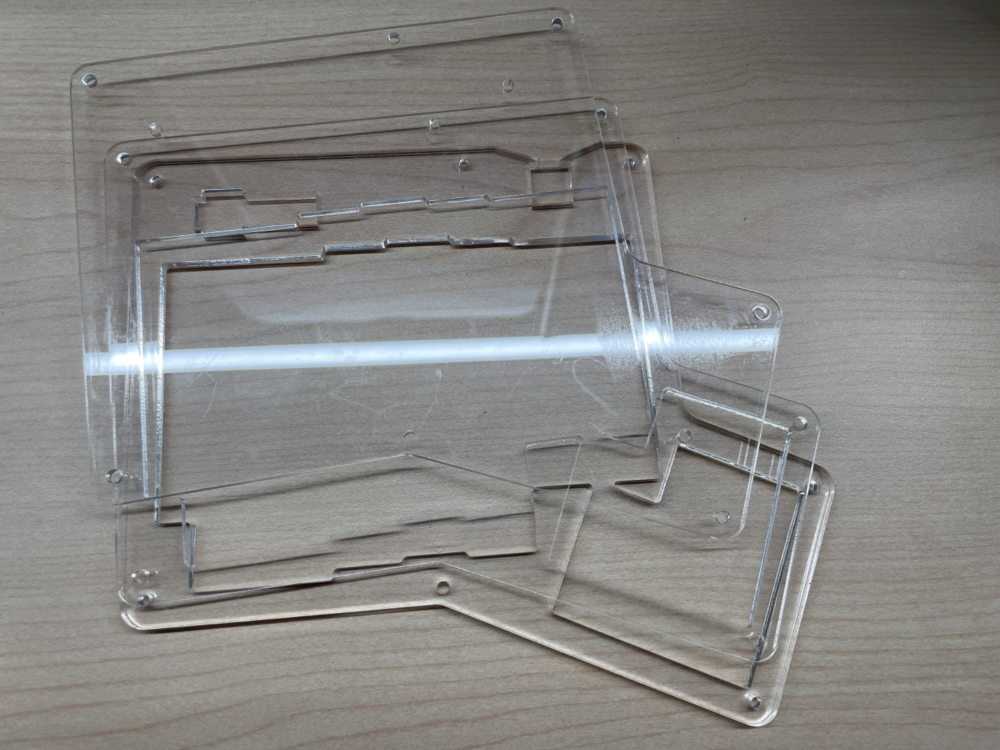

Remove the shell

step-2

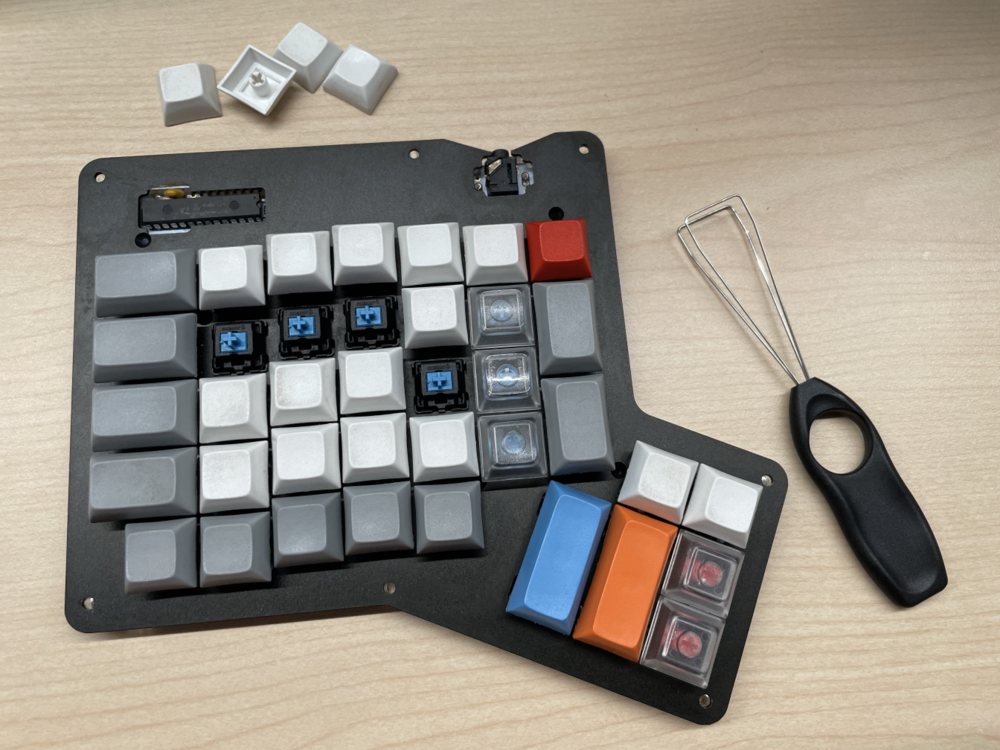

Remove the corresponding keycaps (note that F J keycaps are different)

step-3

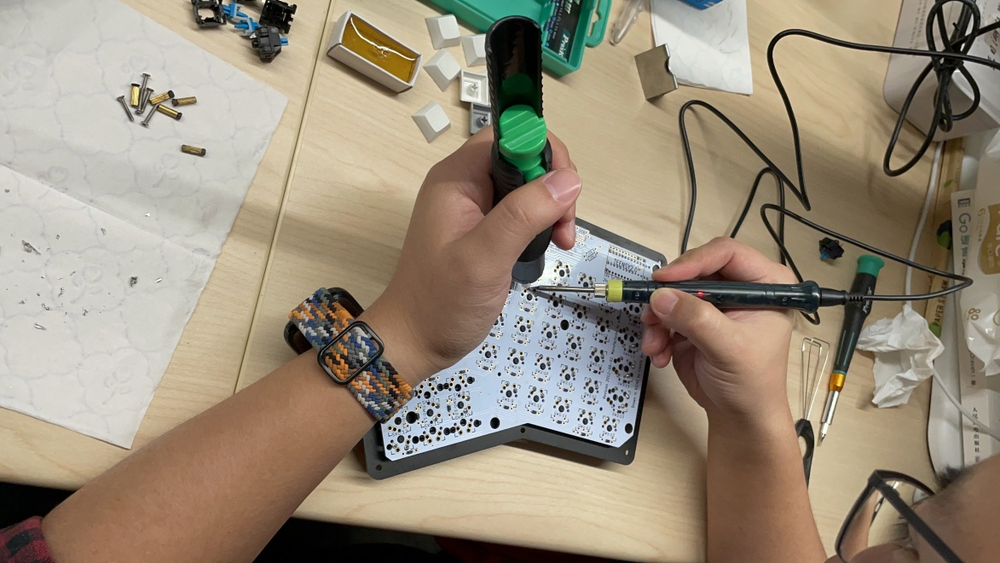

Melt the solder and suck the melted solder away with a solder sucker

step-4

With a key switch puller, remove it from the front, remember there is a soft clip, to up and down direction (i.e. cherry logo direction + opposite force)

step-5

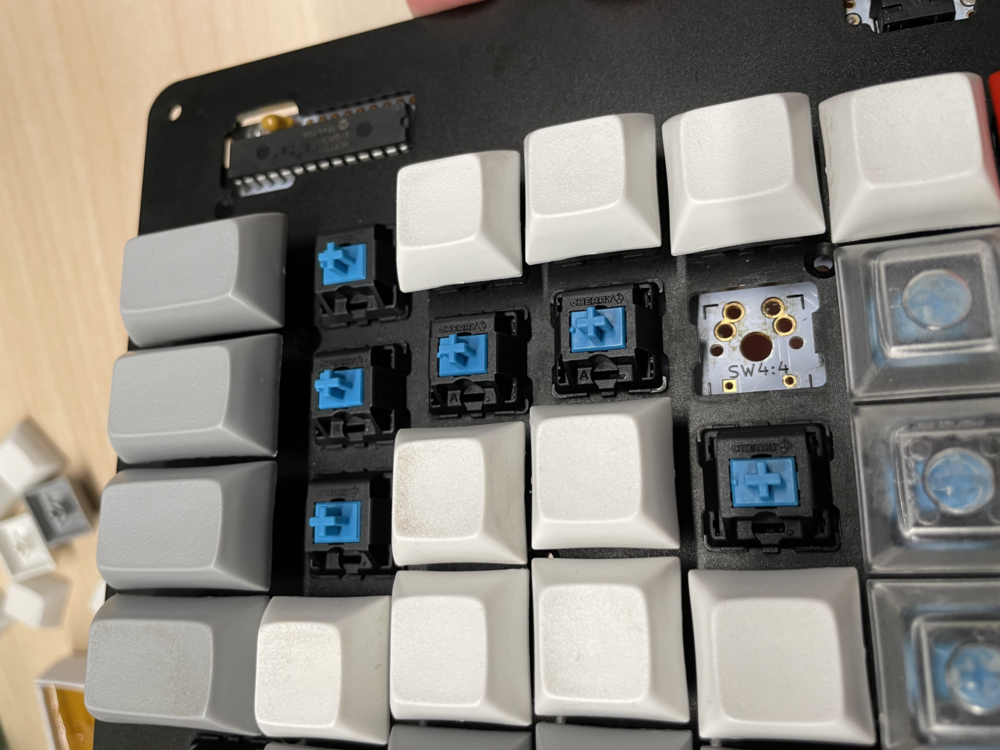

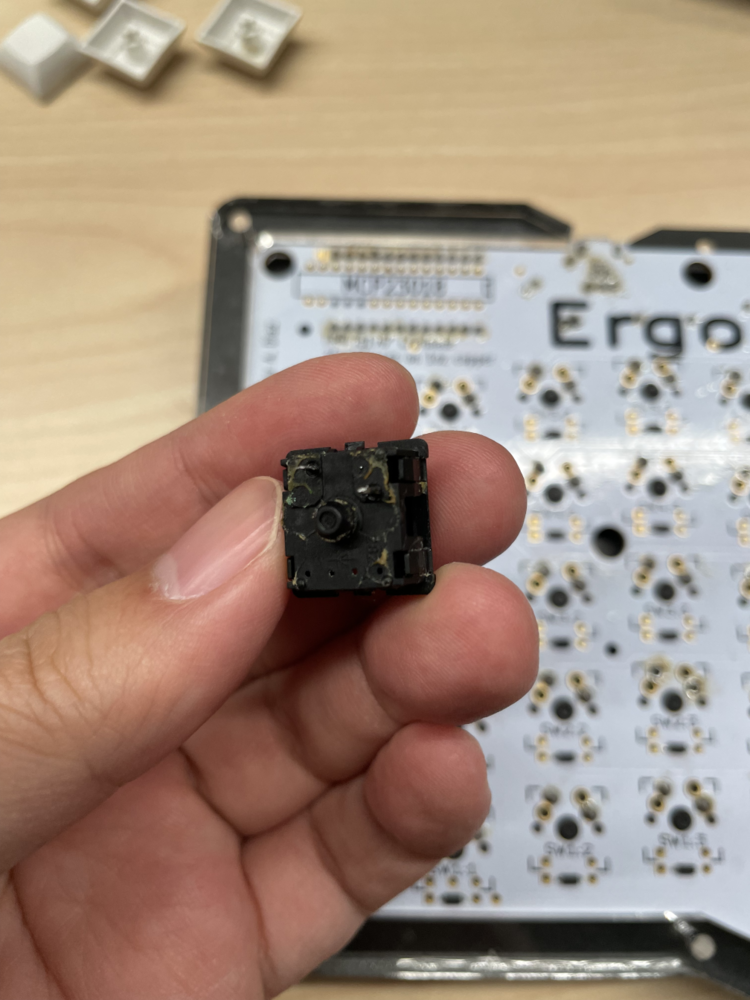

Look at the coffee and soy milk that went in

step-6

Weld the new key shaft on

step-7

Sucking away the debris spit out the look of the solder sucker

step-8

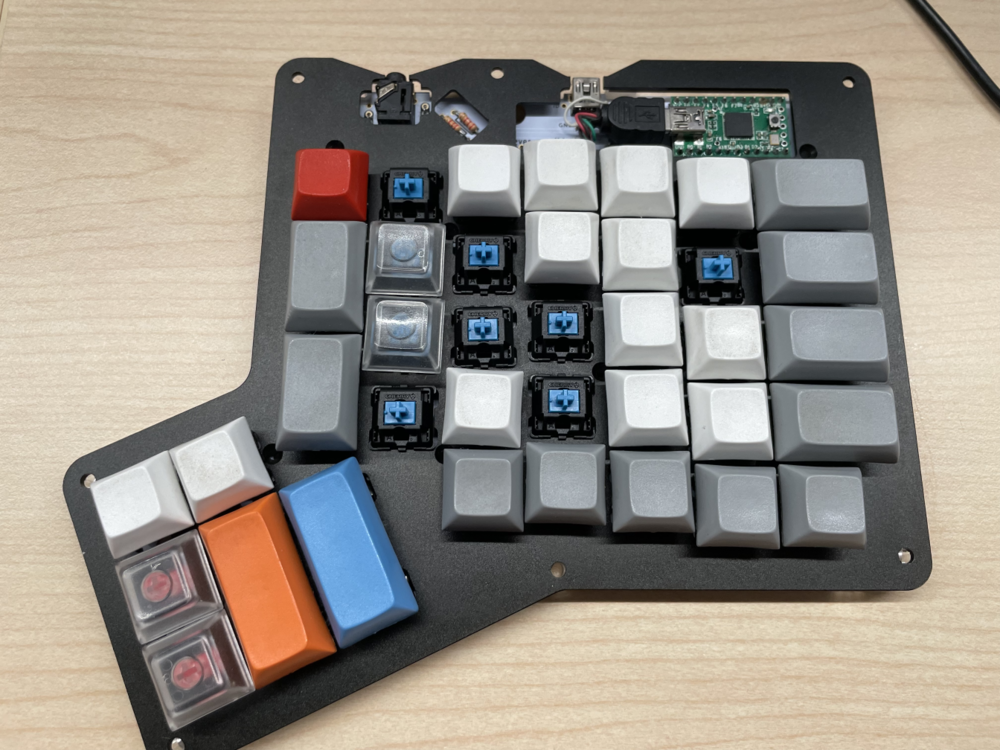

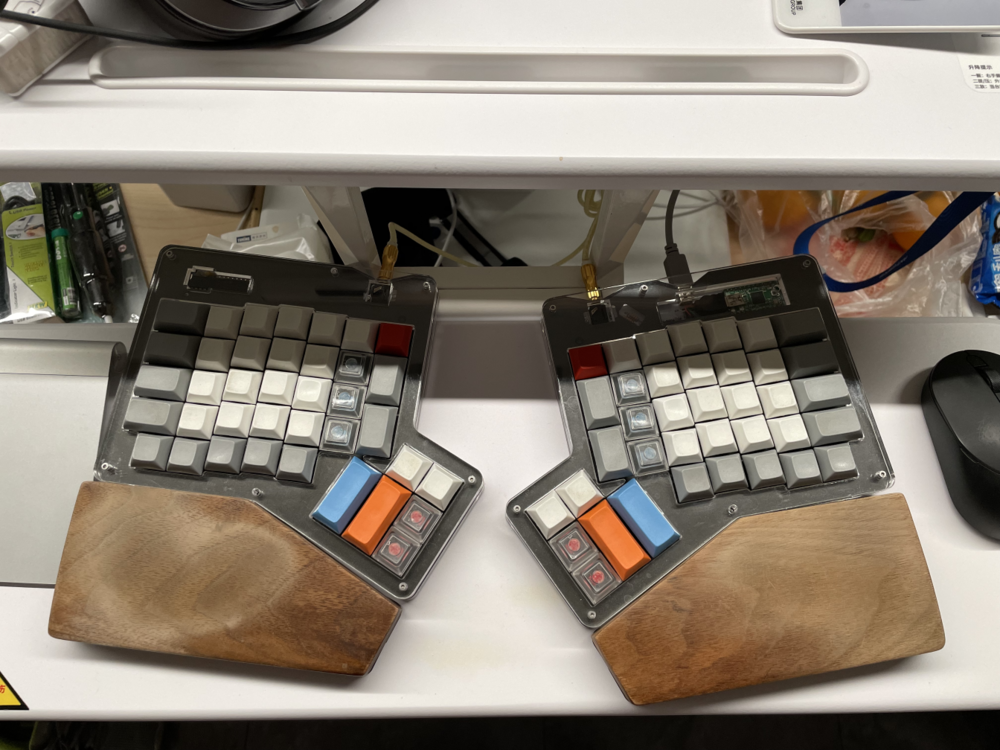

Final assembly

keyboard-final

Summary

I have that feeling of typing smoothly again ~

Youthfulness is back~
