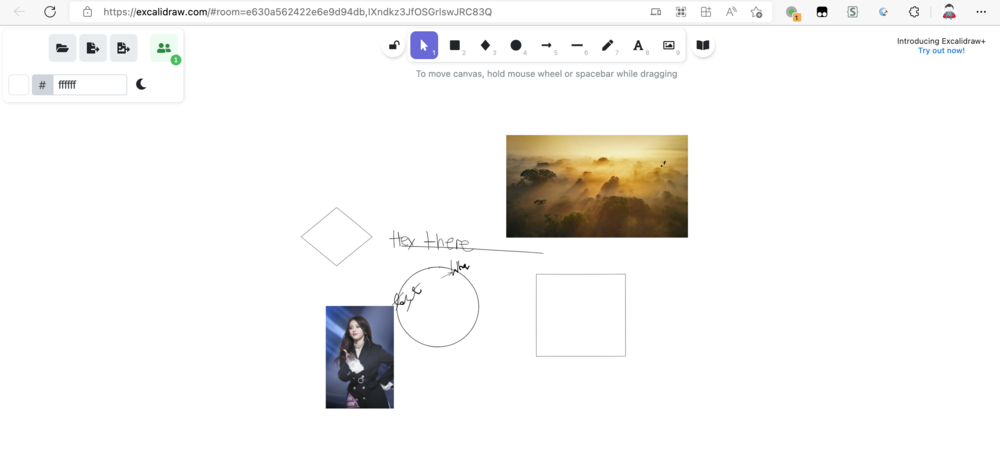

If you did not want get a blank diagram, then you can also visit this public panel Excalidraw to join in the creation.
Excalidraw works very well, I summarize a few points.
- Hand Writing style (Hand Writing) to avoid OCD, what a pixel difference, are gone lie flat in the end
- No delay in online collaboration, ideal for communication and collaboration in the post-epidemic era
- The design of the product is excellent: shortcuts, object connection sticking, selected files directly to the local storage and other details are there
After this product was promoted internally by our internal partners, we quickly fell in love with it and put a lot of diagrams on Excalidraw, but it also led to a new problem.
#2 Before deploying, let’s understand how Excalidraw works

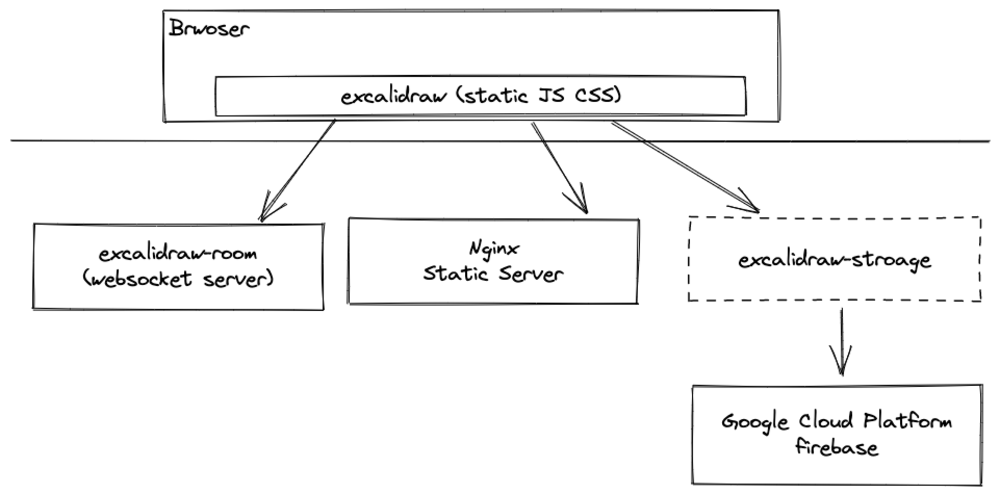

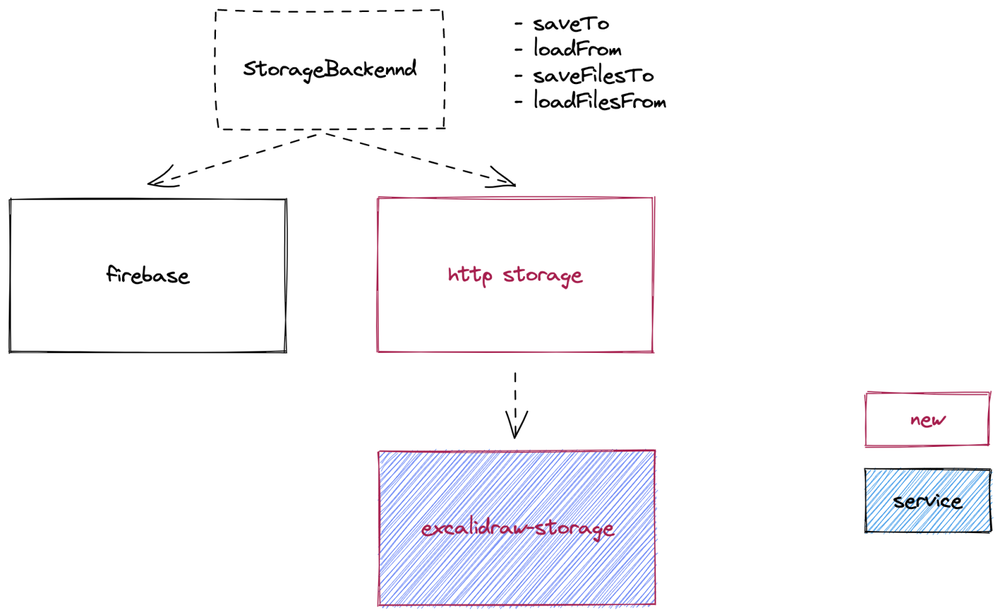

How Excalidraw works and how self hosted works：
So what is the core difficulty of self hosted.
Solving the excalidraw-storage data storage problem, aka. replacing the Google Cloud Platform’s firebase service.
#3 Self hosted PoC
If things don’t work out, ask yourself
It is better to seek from Github than to seek from yourself.
Let’s start by looking at Excalidraw’s storage system. Firebase is Google’s Serverless service, formerly an independent company (and quite popular), but later acquired by GCP.
I started with the idea of replacing Firebase and found a community service Supabase (found a free SaaS service, amazing)
However, after careful research, I found that Supabase’s API is not compatible with firebase and cannot be simply replaced with .
Excalidraw also relies on Excalidraw+ to provide a paid service. Is there a simple and viable solution from the community? I found a bit of a solution within the community:
- Self hosting Excalidraw - Umbrella issue · Issue #1772 · excalidraw/excalidraw
- Collaboration mode - Self-hosting vs Collab on top of · Discussion #3879 · excalidraw/excalidraw (github.com)
They gave a way (although it was later proven that there was still a crooked way).
- Kilian Decaderincourt / Excalidraw Fork · GitLab forked excalidraw
- Kilian Decaderincourt / excalidraw-storage-backend · GitLab
So I started reviewing their solution, opened the code and saw that I had the right idea (replacing several interfaces of firebase), using my own KV storage (Redis / MySQL / Mongo) to replace it.
Attempted deployment and immediately ran into problems with:
What a coincidence that I’m Frontend Intern // Community Patching Specialist // Kubernetes Cleaner // YAML Senior Specialist , specializing in these few things.
#4 Let’s do it
- alswl/excalidraw-storage-backend: Excalidraw Backend
- build with Dockerfile in two stages https://github.com/alswl/excalidraw-storage-backend/commit/d841d734ab02659df370a6bdef3f1d8947696580](https://github.com/alswl/excalidraw-storage-backend/commit/d841d734ab02659df370a6bdef3f1d8947696580)
- using Chinese mirror feat: china mirror · alswl/excalidraw-storage-backend@30a6da9
- alswl/excalidraw: Virtual whiteboard for sketching hand-drawn like diagrams
- fix, using http stroage instead of firebase
- Feat/self host backend by alswl · Pull Request #2 · alswl/excalidraw
#5 Future(or not)

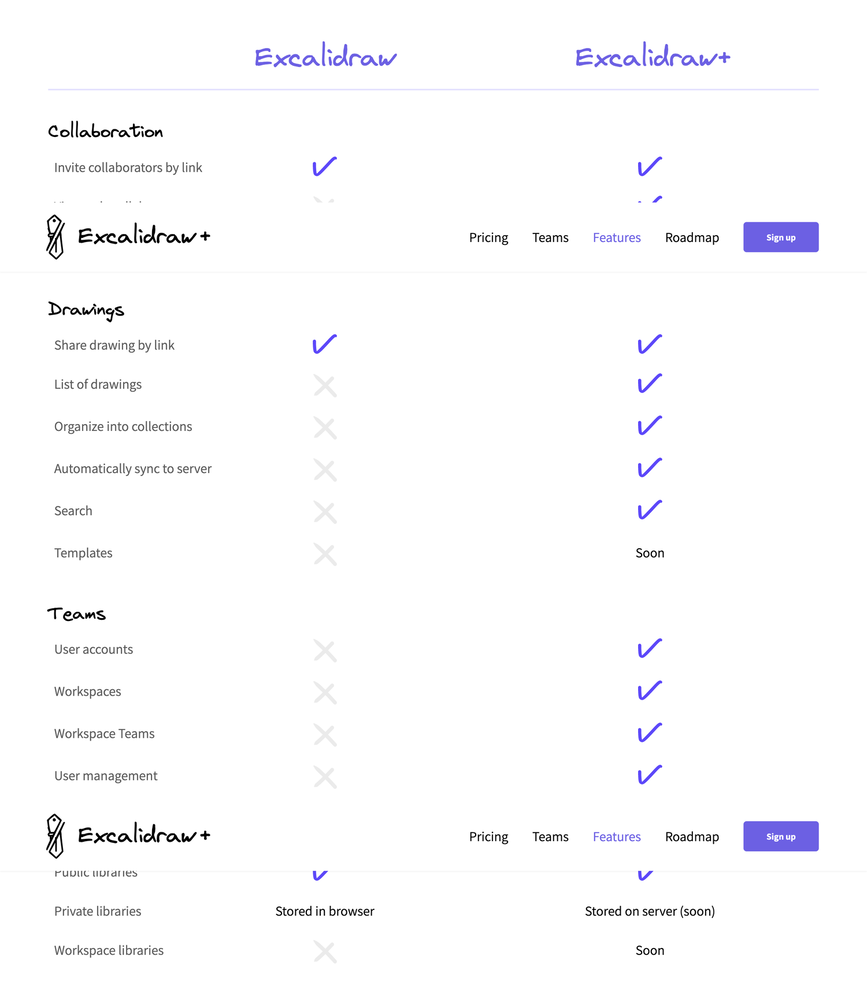

Excalidraw is a free version of the SaaS service, Excalidraw+ is a paid version , what’s the difference?
To sum up.
- More reliable storage, integrated to cloud storage (e.g. iCloud / NAS)
- User identification, connected to a common identity system
- More personalized permissions control (password access, targeted sharing), tenant control, project group control
- Library shared within the domain
- Integration with other systems (Yuque, Dingtalk Documents, Lark, etc.)
Or, just buy Excalidraw enterprise version!!! Less works, more enjoy.
#6 Chinese handwriting optimization
One problem is that Chinese fonts are not handwritten , which is very incongruous. Let’s see which fonts work first.

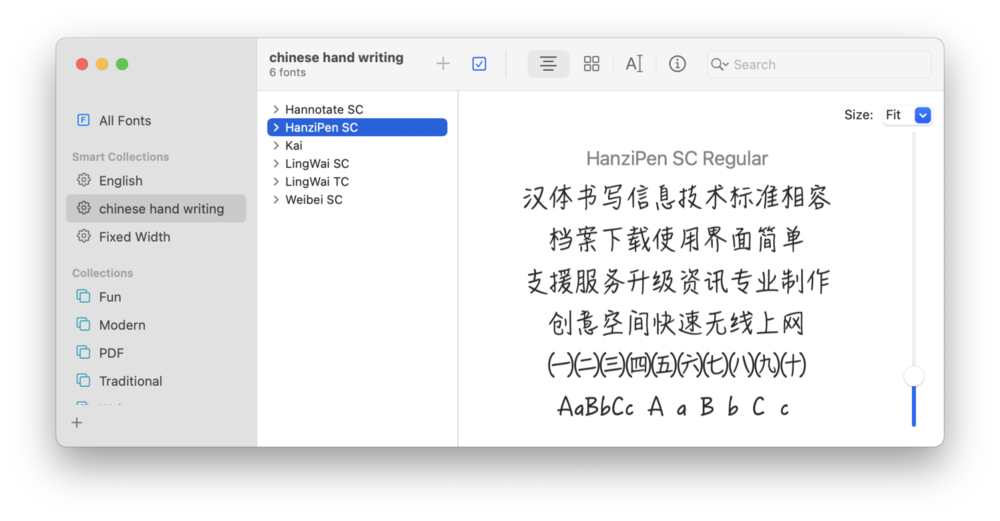

Chinese handwriting fonts supported by macOS:
Windows Chinese support for handwriting is poor, you have to install Office to have more options: 华文行楷; 方正舒体 (release in Office)
- Windows 系统内置的中文字体为什么只有那几种？不多内置几种字体呢？ - 知乎 (zhihu.com)
If not, only the system’s own italic KaiTi will work.
Finally, relying on my poor front-end level, I made a PoC and submitted a PR to the official: [feat: simple impl of multi font support, for chinese font by alswl - Pull Request #5604 - excalidraw/excalidraw] (https://github.com/excalidraw/excalidraw/pull/5604)

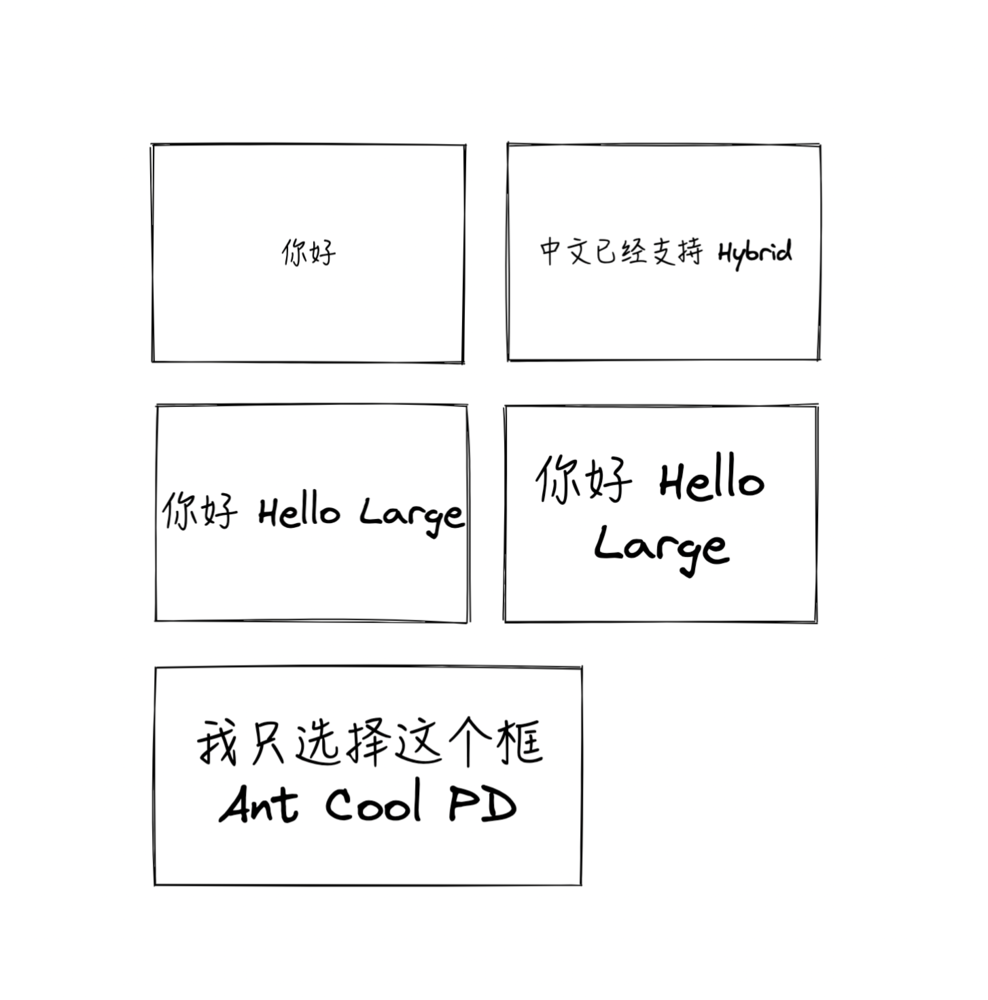

Here is the final result.
A few users came to me to ask how to deploy it. So based on the above solution, I provided a set of one-click pull-up services based on Docker Compose: with collaboration, Chinese font support. See alswl/excalidraw-collaboration.
